    Manual / Automatic Vertical Plastic Pellet Mixer Blender Machine OVM-5000

    Ask Lasest Price
    Brand Name : ORSTE
    Certification : CE, ISO, SGS
    Model Number : OVM-500 ~ OVM-15000
    Price : USD1000~10000/Set
    Delivery Time : 7-15 days
    Payment Terms : TT, LC, Paypal, West Union, Cash
    Supply Ability : 500-3000 Sets / Year
    • Product Details
    • Company Profile

    Manual / Automatic Vertical Plastic Pellet Mixer Blender Machine OVM-5000

    Manual / Automatic Vertical Plastic Pellet Mixer Blender Machine OVM-5000​

    OVM Vertical Mixer Plastic Mixing Machine.pdf


    NAMING PRINCIPLE of Plastic Material Mixer Machine


    OVM-xxx

    ① ②

    ① Orste Vertical Mixer

    ② Mixer Capacity (kg)


    FEATURES of Plastic Material Mixer Machine


    • Material-contact surface are all made of stainless steel ensures no contamination to the material.

    • Vertical screw features fast and even mixing.

    • Detachable top lid design makes it convenient for cleaning and maintenance.

    • Auto timing device can set auto-stop within the range from 0 hr to 300 hrs.

    • Adopt the working method of loading while mixing, thus the purpose of saving mixing time and improving working efficiency can be achieved.

    • Protection devices like main power switch and safety interlock ensure the safety of the operator.


    APPLICATION of Plastic Material Mixer Machine


    OVM Vertical Mixer is mainly applicable in the mixing of large quantity of plastic materials like raw materials, masterbatch and recycled materials. OVM can not be used to deal with plastic powder and all kinds of foods, chemicals, and inflammable, explosive and volatile materials.


    FUNCTIONAL SCHEME of Plastic Material Mixer Machine


    To achieve the aim of mixing material, screw blades are used to generate vortex. Materials are sucked towards mixing screws at the center of hopper bottom by vortex, the materials whirl upward to the top and fall down in the form of umbrella, it works in such a recycle, so that the evenly mixing can be fulfilled in a short period.


    PARAMETERS of Plastic Material Mixer Machine


    Model

    Motor Power (kw)

    Capacity (Ton)

    Outer Dimension (Diameter * Height) (cm)

    Weight (kg)

    OVM-500

    3

    0.5

    Ф120 * 235

    450

    OVM-1000

    4

    1

    Ф140 * 235

    660

    OVM-2000

    5.5

    2

    Ф175 * 355

    780

    OVM-3000

    7.5

    3

    Ф210 * 375

    890

    OVM-5000

    11

    5

    Ф243 * 435

    1100

    OVM-6000

    11

    6

    Ф260 * 455

    1270

    OVM-7000

    11

    7

    Ф270 * 470

    1560

    OVM-8000

    11

    8

    Ф275 * 495

    1750

    OVM-10000

    11

    10

    Ф290 * 525

    1860

    OVM-12000

    11

    12

    Ф310 * 545

    2015

    OVM-15000

    15

    15

    Ф330 * 585

    2180


    We reserve the right to change parameters without prior notice.


    Notes:

    (1) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.

    (2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.


    Application Cases of Plastic Material Mixer Machine

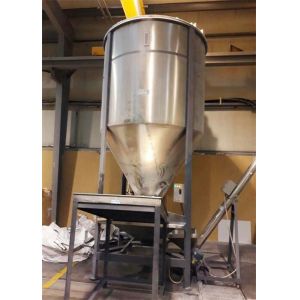

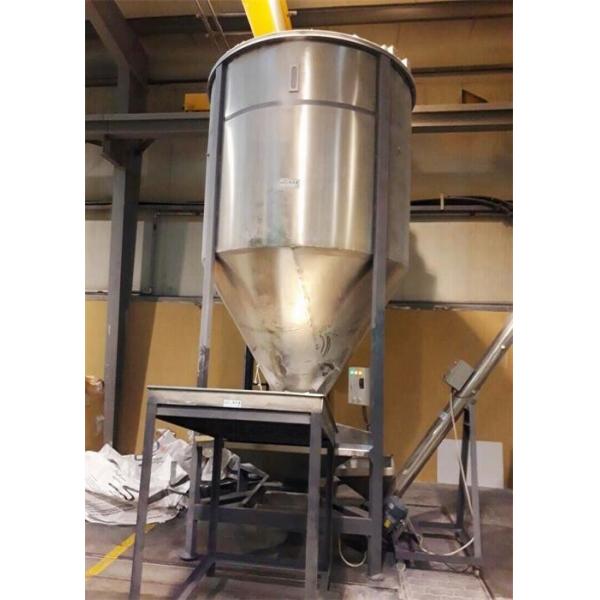

    In the above picture, the OVM vertical mixer is applied to mix virgin plastic granules and recycled plastic film flakes and masterbatch, the materials are fed into the feedport of OVM in batches, the screw of the mixer take the materials to the top of the hopper and spray them to all directions. In this way, different materials are mixed evenly. Then you can open the outlet of the machine to discharge the mixed material manually. And the materials can be loaded for production by the OAL-S vacuum auto loaders or by hand.
